GET TO KNOW ABOUT DIGITAL DIRECT 3D EMBOSSED AND TEXTURED PRINTING

APPLICATIONS PRINTING EFFECTS



3D-embossed-printing



Originated from the type of ink that is used to print with, the digital direct LED UV printer is delivering the graphics on all the printing materials by forming a thin film due to its quickly cured original photopolymer in the ink.

The printing media colors will stand out with coarser halftones that feel like sand paper and create tactile color prints.

The embossed and textured effect resides between 2D digital printing and 3D fabrication. The same as 2D printing, its primary characteristic is to print graphics offering the potential to enhance the results on the substrates by adding vivid colors. The same as 3D printing, it is delivering typically the ink and creating multiple layers.

Differentiating from the actual 3D printing, the digital 3D embossed printing enhancement is not aiming to produce objects thicker than a fraction of a millimeter at a print pass. It is a color enhancement printing technology by creating perceived value and give more importance to the products.

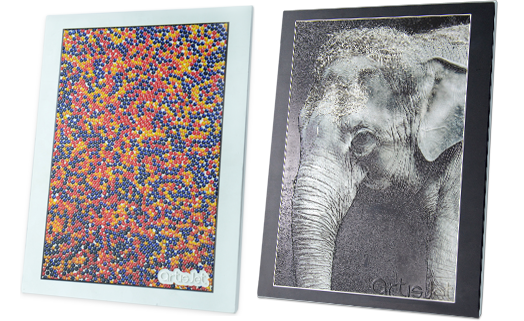

Choose embossed photo realistic effect to create special and unique prints

that will stand out among all applications


As the technology evolved, the digital printing industry brought special applications such as embossed and Braille printing. Take advantage of the creative potential of raised printing


Opportunity and Challenge for 3D Embossed and Textured Printing

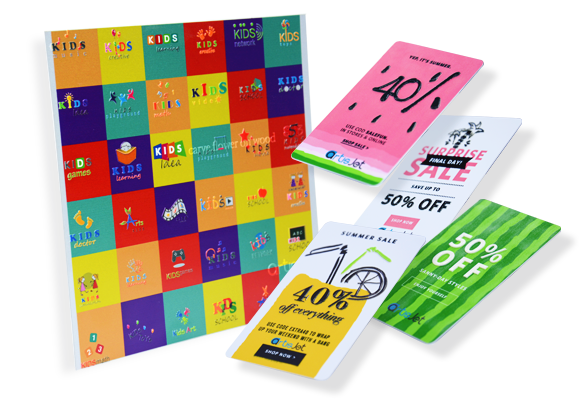

3D-embossed-printing-on-mobile-covers-and-toys
thirts-folded

Opportunity


Get benefits from artisJet 3D embossed solution and print raised colors for brand impression enhancement. Attract and capture more customer attention visually to your brands by displaying the key messages in raised colors. By stimulating the viewers to touch the images, the 3D textured print will increase the value of the printed products and make them memorable.

Achieve glossy print results for a unique perceived value on the products. With the capability to deliver glossy shinning yet raised result, artisJet LED UV digital direct printers allows you to print the key messages that you want to emphasize in a glossy 3D embossed result.


man-on-stairs-icon

Challenge


Differentiate from the boring products and increase high product margins. As the office and internet printers reduced the printing demand for some types of printing like photos, business card print and also reduced the value of the traditional printing, the digital direct to substrate commercial printers light a new business opportunity to increase your printing margins by expanding more product lines.




Main market applications for the 3D textured direct printing


The main applications for the digital direct 3D embossed and textured printing include color printing performance and enhancement and additional value for:

Ready products which value will be raised by color reproduction: custom metallic / wood / carbon packaging, short – run packaging production, custom labels, phone cover printing, custom notebook covers, custom restaurant menus, custom photo books and albums, custom calendars, custom stationary , bags, invitations and post cards.

Semi – ready products for dedicated applications: custom plastic printing for signage, custom business cards, custom membership cards etc.; custom wood printing for coasters, shop signage, wood frames, USB disks etc.; custom metallic printing for blank pen, package, electronic devices, custom aluminum signage and other materials.

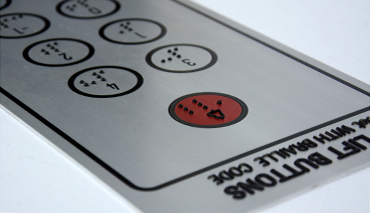

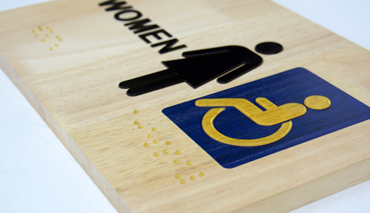

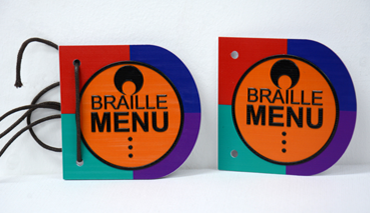

Braille signage printing. Benefiting from the automatic repeat printing functionality for multiple layers with domed and rounded ink dropping shape, the artisJet direct LED UV printers allow you to deliver an inkjet height on the materials from 0.1 mm up to 10 mm at a fast production speed in one step.

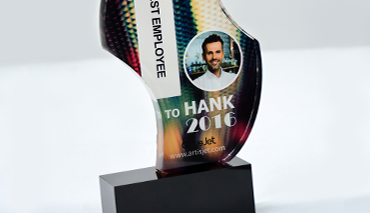

Trophy and awards for the winners. Maximize the proud by raised name prints on the awards in a luxury finish, giving an obvious tactile embossed finish.




3D-embossed-printing
3D-embossed-printing
3D-embossed-printing


3D-embossed-printing
3D-embossed-printing
3D-embossed-printing


Home based and start-up businesses


Equipped with the 1.5 picoliter of piezo printer head and empowered by the anti – static printing system, artisJet printers create layered colors for richer yet greater detailing print with eco – friendly color delivery. For small businesses, start-ups or growing businesses artisJet offers flexible solutions. This solution is easy to operate and offers a low running cost, therefore, a higher profit.



tech

Small operational size

It only requires one computer PC and a working table.

cd

Easy operation

Print directly from the computer software.

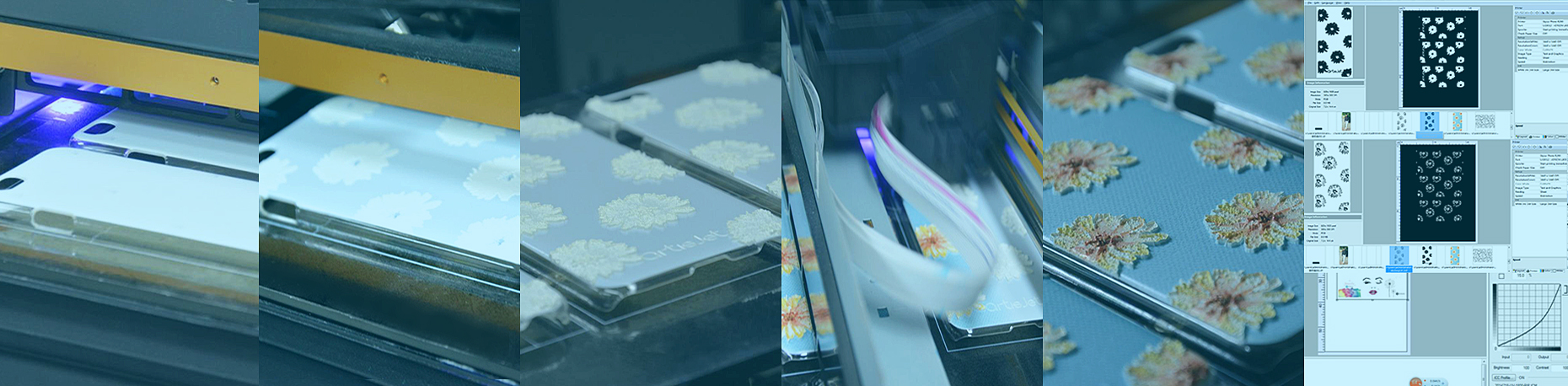

3D-embossed-printing-process



Mid-sized businesses


Fast productivity is to be maintained, as the mid-sized businesses already have their customer base. artisJet offer A3 and A4 sized productivity printing machine.


3D Embossed Printing




Choose the Best Printer for you


artisJet offers two professional LED UV printers, artis 3000 U and artis 2100 U. Both printers can meet the demands of printing direct to any substrate.

artis3000Uimg1
artis2100Uimg1

Model   artis 3000 U artis 2100 U
Print speed   6 min for Full A3 size @1440 x1440 dpi 4 min for Full A4 size
Printing technology   UV LED UV LED
Ink    artisink DTS3 (C, M, Y, K, W) LC, LM, V available CMYK W / CMYK LC LM
Media Application Mobile devices covers and cases, personalized giveways, promotional items (pens, USB sticks, name tags, accessories), trophies, PVC card printing, wood printing, industrial labels and packaging Mobile devices cover printing, custom gifts items, giveaways, PVC card printing...etc..
  Media Size A3+, 280 x 600 mm A4, 180 x 297 mm
  Thickness Up to 90 mm 5 cm
Printing Printing modes 4 pass
6 pass
8 pass
4 pass
6 pass
8 pass
  Print Resolution Up to 5760 x 1440 dpi Up to 2880 x 1440 dpi
  Printing Direction   Not adjustable, bidirectional lighting
  Print Head On demand Epson DX5 piezoelectric printhead.
Made in Japan
On demand Piezoelectic 180*6 nozzles printhead
  Nozzles Variable dot size printing technology,
starting from 1.5 pl
Variable dot size printing technology,
starting from 1.5 pl
Connectivity Ports USB 2.0 USB 2.0
  Operating systems Windows Windows 2000 / XP / WIN7/ Vista...
Dimensions Depth x Width x Height Printer 645 x 690 x 490 mm Printer 570 x 560 x 440 mm
Weight   Printer 120Kg Printer 48Kg
Flatbed transmission     Servo motor
Table up/down mode     Motorized 50 mm
Content of the box   artis 3000 U, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Dumper artis 2100 U, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Dumper
Environmental ranges   10 - 35 ° 10 - 35 °
Power   ~75W, Input voltage (auto ranging)
110V/220V 50 - 60 HZ
~75W, Input voltage (auto ranging)
110V/220V 50 - 60 HZ
Certification   CE certified CE certified
Warranty   One year limited warranty One year limited warranty

Printer


artis 3000U artisJet 3000U, A3+ LED UV Printer


Ink


Product No. Description Ink Compatibility

DTS3 - 1000-001 Cyan UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-002 Magenta UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-003 Yellow UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-004 Black UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-005 Light Cyan UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-006 Light Magenta UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-007 White UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-008 Varnish UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 500-001 Cyan UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-002 Magenta UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-003 Yellow UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-004 Black UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-005 Light Cyan UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-006 Light Magenta UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-007 White UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-008 Varnish UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 200-001 Cyan UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-002 Magenta UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-003 Yellow UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-004 Black UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-005 Light Cyan UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-006 Light Magenta UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-007 White UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-008 Varnish UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U

Cleaning agent Description
BRCA-U-1000-001 Cleaning agent for LED UV inks, 1000 ml
BRCA-U-500-001 Cleaning agent for LED UV inks, 500 ml
BRCA-U-200-001 Cleaning agent for LED UV inks, 200 ml

Fixing agent Description
BRCA-U-1000-001 Fixing agent A/B liquids for UV LED inks, 1000ml
BRCA-U-500-001 Fixing agent A/B liquids for UV LED inks, 500ml
BRCA-U-200-001 Fixing agent A/B liquids for UV LED inks, 200ml



Printer


artis 2100U artisJet 2100U, A4 LED UV Printer


Ink


Product No. Description Ink Compatibility

DTSAT3 - 1000-001 Cyan UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-002 Magenta UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-003 Yellow UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-004 Black UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-005 White UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 500-001 Cyan UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-002 Magenta UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-003 Yellow UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-004 Black UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-005 White UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 200-001 Cyan UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-002 Magenta UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-003 Yellow UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-004 Black UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-005 White UV-LED Ink DTSAT3, 200ml artis 2100U

Cleaning agent Description
BRCA-UAT3-1000-001 Cleaning agent for UV LED DTSAT3 inks, 1000ml
BRCA-UAT3-500-001 Cleaning agent for UV LED DTSAT3 inks, 500ml
BRCA-UAT3-200-001 Cleaning agent for UV LED DTSAT3 inks, 200ml

Fixing agent Description
BRCP-U-1000-001 Fixing agent A/B liquids for UV LED inks, 1000ml
BRCP-U-500-001 Fixing agent A/B liquids for UV LED inks, 500ml
BRCP-U-200-001 Fixing agent A/B liquids for UV LED inks, 200ml

Designed with simplicity in mind, the artisJet RIP supports all BR printers models. It is suitable for beginners who are looking for a consistent vivid color output.

Layout platform

  • Simple user-friendly interface
  • Print origin setting, image resizing
  • Raster and Vector images support
  • Repetitive print jobs for industrial applications
  • Previewing

Print Engine

  • Vivid color reproduction
  • Bi-directional and Uni-directional print modes
  • Supports multiple ink channel configurations
  • Supports different resolution print modes (360x360 and up to 1440x2880dpi)
  • Support for jpg, tiff, bmp, png, eps and pdf image files
  • Total ink limit and individual ink channel limit settings
  • Color management engine with ICC profiles support
  • Direct printing from common graphic software. (CorelDraw, Photoshop, Autocad...)
