CUSTOMIZED DIGITAL DIRECT PLASTIC CARDS PRINTING

PLASTIC CARDS FOR YOUR BUSINESS



applications-pvc-cards



LED UV Direct Digital plastic printing is a system that digitally delivers designs and photos from the computer or mobile on all types of plastic materials, from acrylic, PVC to ABS and others, with high quality reproduction on flexible or rigid plastic substrates and its derivatives.

Plastic / PVC materials are resistant, flexible, durable and cost effective to produce and easy to print on. It has a wide range of applicability especially in digital card personalization.

Plastic cards are now far more than a basic photo or simple text on a regular business card. LED UV technology offers a variety of options that can be displayed on plastic cards with barcodes, magnetic stripes and RFID to allow a greater security and at the same time to serve as a marketing opportunity.

Choose plastic card printing

to create something that reflects everything you do for your customers


PVC cards printing is a proven way to extend market awareness. Print on plastic cards and give to your customers creative, innovative, cutting edge and professional solutions regardless quantity.


Opportunity and Challenge for PVC Card Printing




custom-business-cards
thirts-folded

Opportunity


Personalized or customized products like PVC cards can make people’s business more appealing to customers conveying trust, professionalism and care for customers. artisJet print systems supports any type of plastic direct printing in any shape. In addition, LED UV printing on plastics keeps a high anti – scratch level and durability as well, regardless the color and thickness of the plastic material. Get the key benefits of the artisJet LED UV digital plastic card print systems which deliver rich, deep colors that maintain their vibrancy.


man-on-stairs-icon

Challenge


Plastic cards are the boost for printing businesses, for market and brand awareness. Use plastic material to create a card that is distinctly yours. Think shape, plastic, vertical, horizontal, rounded and more! artisJet helps your business by providing equipment to create something that reflects everything you do for your customers.




Main market applications for the plastic / PVC cards printing


Plastic cards applications for digital direct plastic card printing are available in several options.

Variable data print is a form of digital printing on demand and adds a promotional code, sequence of letters and numbers, name or address to your printed items. With artisJet, changeable data such as card holder name, card number, card profile image or expire date can be printed with outstanding raised lettering and silvery or gold metallic effects.

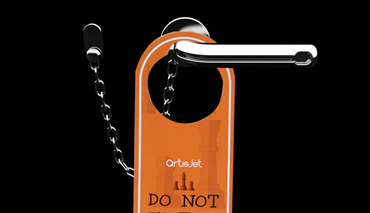

PVC Key tags cards are an effective way of promoting a business and powerful items that can be achieved by LED UV direct printing in no time. It can be used for discount offers, membership cards with barcodes, product labeling, promotional products for tradeshows and many more.

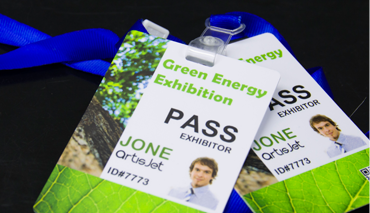

Name badges and access plastic cards can be easily customized with designs and artwork of choice. Name badges and tags comprise a large variety of use such as luggage tags for trips and conferences, pet tags, hung badges, chest cards etc. The business value of passes permits printing for staff, special events cards, fitness centers cards or any cards can be maximized with raised lettering printing and strong color durability.

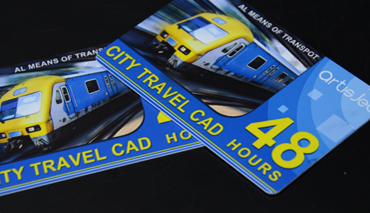

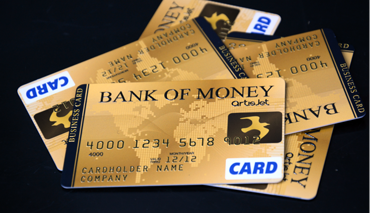

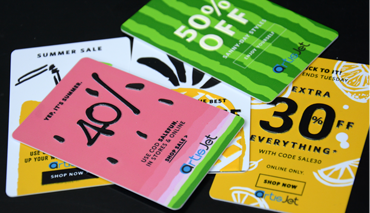

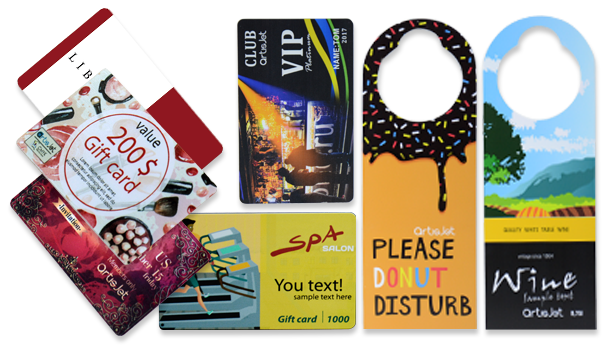

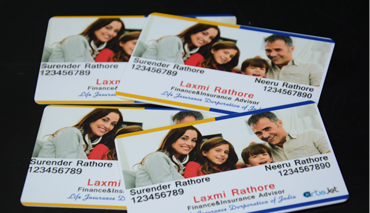

Customized small PVC standard cards such as business cards and gift cards are the boost for advertising your brand message and get business exposure with designed logos, images and other graphical elements printed on a variety of cards’ shapes and sizes with unlimited color selection, high shine gloss or matte finish.

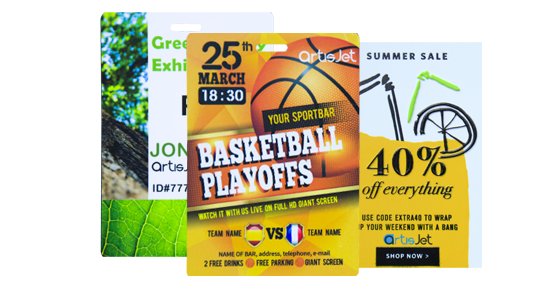

Personalized large PVC signage cards can be used for interior or exterior purposes as trade show signage printing, directional signage printing, event signage printing or as door hanger signage printing. You can choose to print full color on both card sides at high resolution quality and sharp consistent color production.




applications-pvc-cards
applications-pvc-cards
applications-pvc-cards


applications-pvc-cards
applications-pvc-cards
applications-pvc-cards


Home based and start-up businesses


The best way to print on PVC cards is to use artisJet’s LED UV printers with specialized software. LED UV printers come with a variety of customized plastic card printing capabilities. You can opt for basic one sided PVC card printing for a home based business production and at the same time you can get the benefits of printing full color with graphics on both sides for large volume of PVC cards. On the basis of printing experiences, artisJet has been trying to offer the solution for a cost effective but also easier production method. artisJet LED UV technology replaces the outdated traditional PVC cards printing methods such as screen printing, stamping, sublimation or others, by giving anti-scratch results with high level of productivity and durability regardless the color and thickness of the plastic material.



Variable Data print solutions


Empowered by artisJet printers and artisRIP V.9.1 software, VDP is about on demand printing applications that can contain variable information without limiting the content and even graphics. Get the benefits of VDP economical solution for your business and learn more about artisJet VDP printing process.



tech

Small operational size

It only requires one computer PC and a working table.

cd

Easy operation

Print directly from the computer software.



Buyer cards, Security cards, Season passes, Wallet calendars, Check cashing cards, Event cards, Hospital cards, Luggage tags, Gift cards, Hotel key cards. artisJet ensures digital LED UV PVC cards printing solutions for your business by offering A4 and A3+ printing platforms. Choosing LED UV systems for card personalization printing purposes is an excellent option in terms of speed and production effectiveness as well as investment.



PVC Cards Printing




Choose the Best Printer for you


artisJet offers two professional LED UV printers, artis 3000 U and artis 2100 U. Both printers can meet the demands of printing direct to any substrate.

artis3000Uimg1
artis2100Uimg1

Model   artis 3000 U artis 2100 U
Print speed   6 min for Full A3 size @1440 x1440 dpi 4 min for Full A4 size
Printing technology   UV LED UV LED
Ink    artisink DTS3 (C, M, Y, K, W) LC, LM, V available CMYK W / CMYK LC LM
Media Application Mobile devices covers and cases, personalized giveways, promotional items (pens, USB sticks, name tags, accessories), trophies, PVC card printing, wood printing, industrial labels and packaging Mobile devices cover printing, custom gifts items, giveaways, PVC card printing...etc..
  Media Size A3+, 280 x 600 mm A4, 180 x 297 mm
  Thickness Up to 90 mm 5 cm
Printing Printing modes 4 pass
6 pass
8 pass
4 pass
6 pass
8 pass
Dimensions Depth x Width x Height Printer 645 x 690 x 490 mm Printer 570 x 560 x 440 mm
  Printing Direction   Not adjustable, bidirectional lighting
  Print Head On demand Epson DX5 piezoelectric printhead.
Made in Japan
On demand Piezoelectic 180*6 nozzles printhead
  Nozzles Variable dot size printing technology,
starting from 1.5 pl
Variable dot size printing technology,
starting from 1.5 pl
Connectivity Ports USB 2.0 USB 2.0
  Operating systems Windows Windows 2000 / XP / WIN7/ Vista...
Dimensions Depth x Width x Height Printer 780x900x600 mm Printer 390x523x580 mm
Weight   Printer 120Kg Printer 48Kg
Flatbed transmission     Servo motor
Table up/down mode     Motorized 50 mm
Content of the box   artis 3000 U, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Dumper artis 2100 U, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Dumper
Environmental ranges   10 - 35 ° 10 - 35 °
Power   ~75W, Input voltage (auto ranging)
110V/220V 50 - 60 HZ
~75W, Input voltage (auto ranging)
110V/220V 50 - 60 HZ
Certification   CE certified CE certified
Warranty   One year limited warranty One year limited warranty

Printer


artis 3000U artisJet 3000U, A3+ LED UV Printer


Ink


Product No. Description Ink Compatibility

DTS3 - 1000-001 Cyan UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-002 Magenta UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-003 Yellow UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-004 Black UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-005 Light Cyan UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-006 Light Magenta UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-007 White UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 1000-008 Varnish UV-LED Ink DTS3, 1000ml artis 3000U, artis 5000U
DTS3 - 500-001 Cyan UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-002 Magenta UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-003 Yellow UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-004 Black UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-005 Light Cyan UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-006 Light Magenta UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-007 White UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 500-008 Varnish UV-LED Ink DTS3, 500ml artis 3000U, artis 5000U
DTS3 - 200-001 Cyan UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-002 Magenta UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-003 Yellow UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-004 Black UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-005 Light Cyan UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-006 Light Magenta UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-007 White UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U
DTS3 - 200-008 Varnish UV-LED Ink DTS3, 200ml artis 3000U, artis 5000U

Cleaning agent Description
BRCA-U-1000-001 Cleaning agent for LED UV inks, 1000 ml
BRCA-U-500-001 Cleaning agent for LED UV inks, 500 ml
BRCA-U-200-001 Cleaning agent for LED UV inks, 200 ml

Fixing agent Description
BRCA-U-1000-001 Fixing agent A/B liquids for UV LED inks, 1000ml
BRCA-U-500-001 Fixing agent A/B liquids for UV LED inks, 500ml
BRCA-U-200-001 Fixing agent A/B liquids for UV LED inks, 200ml



Printer


artis 2100U artisJet 2100U, A4 LED UV Printer


Ink


Product No. Description Ink Compatibility

DTSAT3 - 1000-001 Cyan UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-002 Magenta UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-003 Yellow UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-004 Black UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 1000-005 White UV-LED Ink DTSAT3, 1000ml artis 2100U
DTSAT3 - 500-001 Cyan UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-002 Magenta UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-003 Yellow UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-004 Black UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 500-005 White UV-LED Ink DTSAT3, 500ml artis 2100U
DTSAT3 - 200-001 Cyan UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-002 Magenta UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-003 Yellow UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-004 Black UV-LED Ink DTSAT3, 200ml artis 2100U
DTSAT3 - 200-005 White UV-LED Ink DTSAT3, 200ml artis 2100U

Cleaning agent Description
BRCA-UAT3-1000-001 Cleaning agent for UV LED DTSAT3 inks, 1000ml
BRCA-UAT3-500-001 Cleaning agent for UV LED DTSAT3 inks, 500ml
BRCA-UAT3-200-001 Cleaning agent for UV LED DTSAT3 inks, 200ml

Fixing agent Description
BRCP-U-1000-001 Fixing agent A/B liquids for UV LED inks, 1000ml
BRCP-U-500-001 Fixing agent A/B liquids for UV LED inks, 500ml
BRCP-U-200-001 Fixing agent A/B liquids for UV LED inks, 200ml

Designed with simplicity in mind, the artisJet RIP supports all BR printers models. It is suitable for beginners who are looking for a consistent vivid color output.

Layout platform

  • Simple user-friendly interface
  • Print origin setting, image resizing
  • Raster and Vector images support
  • Repetitive print jobs for industrial applications
  • Previewing

Print Engine

  • Vivid color reproduction
  • Bi-directional and Uni-directional print modes
  • Supports multiple ink channel configurations
  • Supports different resolution print modes (360x360 and up to 1440x2880dpi)
  • Support for jpg, tiff, bmp, png, eps and pdf image files
  • Total ink limit and individual ink channel limit settings
  • Color management engine with ICC profiles support
  • Direct printing from common graphic software. (CorelDraw, Photoshop, Autocad...)
