artis 5000T, The all NEW A2+ Textile Production Printer

Print BIG Artwork and up to 71 by 51 cm



Print bigger and 2X faster

Superior Garment Print Quality

Versatile printer suitable for direct printing on t-shirts, pants, socks, towels ... etc...

Low running cost as low as 15 to 50 US cents

Produces quality prints on cotton and polyesters

White ink channel for printing on dark textiles

High printing resolution and up to 2880 dpi

Three interchangeable jigs supplied for various printing applications


STRETCH YOUR CAPABILITIES

pdf-icon

Automatic error checking on boot with error reporting

Operational convenience with the unique lateral loading architecture

Minimal operational cost with the continuous ink supply system

Simplified operation and maintenance


ASK FOR A QUOTATION

BUSINESS OPPORTUNITIES AND APPLICATIONS

T-shirt  |   Handbags  |   Handkerchief  |   Caps  |   Personalized Pans  |   Custom Gifts  |   Custom Uniforms  |   Socks  |   Towels



Technical Specifications

pdf-icon
Print speed   5 minutes for Full 51 * 70CM @ 1440 * 1440 dpi
Printing technology   Direct to garment inks
Ink    artisJet DTG inks (C,M,Y,K,W,W,W,W)
Media Application T-shirts, custom ties, custom uniforms, pants, socks, towels ... etc...
  Media Size 510 x 710 mm (20.07 x 27.95 in)
  Thickness 100 mm (3.93 in)
  Rotary Print Optional
Printing Printing modes 4 pass
6 pass
8 pass
  Print Resolution Up to 5760 x 1440 dpi
  Print Head On demand Epson DX5 piezo electric printhead. Made in Japan
Connectivity Nozzles Variable dot size printing technology, starting from1.5 pl and up to 21pl
  Ports USB 2.0
  Operating systems Windows
Dimensions Depth x Width x Height Printer 790 x 970 x 540 mm (31.10 x 38.18 x 21.25 in)
Shipping 1100 x 1230 x 760 mm (43.30 x 48.42 x 29.92 in)
Weight   Printer 180 Kg, Shipping 210 Kg
Content of the box   artis 5000 T, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Damper
Environmental ranges   1 - 35 °
Power consumption and requirements   AC100V~240V±10%, 0.5kVA
Certification   CE certified
Warranty   One year limited warranty

Automatic Printhead Height Adjustment

Equiped with sensors to automatically adjust head height and reduce the print head strikes.


Continuous Ink Supply System

Unlike ink cartridges, this system allows for 100% utilization of available ink.


Automatic Reprint Function

This functionality allows the reprint of the last print job from the control panel.

Printer

artis 5000T artisJet 5000T, DTG Printer


Ink

Product No. Description Ink Compatibility
DTG - 1000-001 Cyan Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-002 Magenta Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-003 Yellow Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-004 Black Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-005 White Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 500-001 Cyan Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-002 Magenta Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-003 Yellow Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-004 Black Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-005 White Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 200-001 Cyan Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-002 Magenta Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-003 Yellow Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-004 Black Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-005 White Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T

Fixing agent Description
BRCP-T-1000-001 Fixing agent for textile print/pigment water based ink (Dupont), 1000ml
BRCP-T-500-001 Fixing agent for textile print/pigment water based ink (Dupont), 500ml
BRCP-T-200-001 Fixing agent for textile print/pigment water based ink (Dupont), 200ml

Designed with simplicity in mind, the artisrip lite supports all BR printers models. It is suitable for beginners who are looking for a consistent vivid color output.

Layout platform

  • Simple user-friendly interface
  • Print origin setting, image resizing
  • Raster and Vector images support
  • Repetitive print jobs for industrial applications
  • Previewing

Print Engine

  • Vivid color reproduction
  • Bi-directional and Uni-directional print modes
  • Supports multiple ink channel configurations
  • Supports different resolution print modes (360x360 and up to 1440x2880dpi)
  • Support for jpg, tiff, bmp, png, eps and pdf image files
  • Total ink limit and individual ink channel limit settings
  • Color management engine with ICC profiles support
  • Direct printing from common graphic software. (CorelDraw, Photoshop, Autocad...)


LET’S GET STARTED!
Ignite Your Creativity with Us
We’re excited to be your partner in exploring our world of personalized and customized color printing solutions. Your journey to exceptional printing experiences starts here!



artis3000T
artis3000T
artis3000T
artis3000T

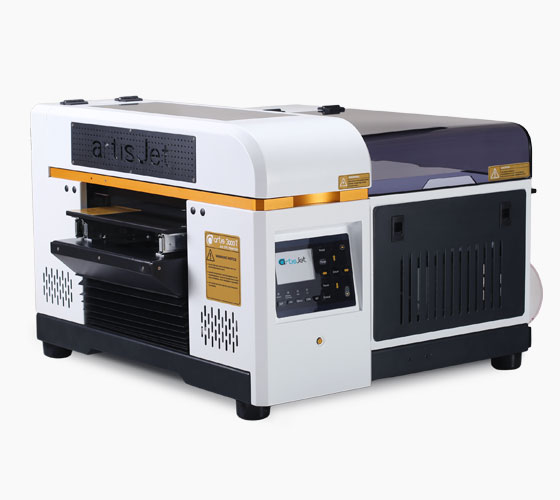

Artis 3000T, A3+ DTG printing system

Advanced TECHNOLOGY FOR outstanding results on textiles



Versatile printer suitable for direct printing on t-shirts, pants, socks, towels ... etc...

Low running cost as low as 15 to 50 US cents

Produces quality prints on cotton and polyesters

White ink channel for printing on dark textiles

High printing resolution and up to 2880 dpi

Three interchangeable jigs supplied for various printing applications


Produce washable and durable textiles

pdf-icon

Operational convenience with the unique lateral loading architecture

Minimal operational cost with the continuous ink supply system

Simplified operation and maintenance

Auto repeat control panel print function

Safe operation with the automated printhead cleaning system



ASK FOR A QUOTATION

BUSINESS OPPORTUNITIES AND APPLICATIONS

T-shirt  |   Handbags  |   Handkerchief  |   Caps  |   Personalized Pans  |   Custom Gifts  |   Custom Uniforms  |   Socks  |   Towels



Technical Specifications

pdf-icon
Print speed   3 min for A4 full size @ 1440x1440 dpi
Printing technology   Direct to garment inks
Ink    artisJet DTG inks (C,M,Y,K,W,W,W,W)
Media Application T-shirts, custom ties, custom uniforms, pants, socks, towels ... etc...
  Media Size A3+, 329 x 600 mm (12.95 x 23.62 in)
Printing Printing modes 4 pass
6 pass
8 pass
  Print Resolution Up to 5760*1440dpi
  Print Head On demand Epson DX5 piezo electric printhead. Made in Japan
Connectivity Nozzles Variable dot size printing technology, starting from1.5 pl and up to 21pl
  Ports USB 2.0
  Operating systems Windows
Dimensions Depth x Width x Height Printer 645 x 690 x 490 mm (25.39 x 27.16 x 19.29 in),
Shipping 880 x 990 x 650 mm (34.64 x 38.97 x 25.59 in)
Weight   Printer 120 Kg, Shipping 140 Kg
Content of the box   artis 3000 T, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Damper
Environmental ranges   10 - 35 °
Power consumption and requirements   ~75W, Input voltage (auto ranging) 110V/220V 50 - 60 HZ
Certification   CE certified
Warranty   One year limited warranty

Automatic Printhead Height Adjustment

Equiped with sensors to automatically adjust head height and reduce the print head strikes.


Continuous Ink Supply System

Unlike ink cartridges, this system allows for 100% utilization of available ink.


Automatic Reprint Function

This functionality allows the reprint of the last print job from the control panel.

Printer

artis 3000T artisJet 3000T, A3+ DTG Printer


Ink

Product No. Description Ink Compatibility
DTG - 1000-001 Cyan Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-002 Magenta Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-003 Yellow Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-004 Black Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 1000-005 White Garment Ink DTG-TX2, 1000ml artis 3000T, artis 5000T
DTG - 500-001 Cyan Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-002 Magenta Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-003 Yellow Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-004 Black Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 500-005 White Garment Ink DTG-TX2, 500ml artis 3000T, artis 5000T
DTG - 200-001 Cyan Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-002 Magenta Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-003 Yellow Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-004 Black Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T
DTG - 200-005 White Garment Ink DTG-TX2, 200ml artis 3000T, artis 5000T

Fixing agent Description
BRCP-T-1000-001 Fixing agent for textile print/pigment water based ink (Dupont), 1000ml
BRCP-T-500-001 Fixing agent for textile print/pigment water based ink (Dupont), 500ml
BRCP-T-200-001 Fixing agent for textile print/pigment water based ink (Dupont), 200ml

Designed with simplicity in mind, the artisrip lite software supports all BR printers models. It is suitable for beginners who are looking for a consistent vivid color output.

Layout platform

  • Simple user-friendly interface
  • Print origin setting, image resizing
  • Raster and Vector images support
  • Repetitive print jobs for industrial applications
  • Previewing

Print Engine

  • Vivid color reproduction
  • Bi-directional and Uni-directional print modes
  • Supports multiple ink channel configurations
  • Supports different resolution print modes (360x360 and up to 1440x2880dpi)
  • Support for jpg, tiff, bmp, png, eps and pdf image files
  • Total ink limit and individual ink channel limit settings
  • Color management engine with ICC profiles support
  • Direct printing from common graphic software. (CorelDraw, Photoshop, Autocad...)


LET’S GET STARTED!
Ignite Your Creativity with Us
We’re excited to be your partner in exploring our world of personalized and customized color printing solutions. Your journey to exceptional printing experiences starts here!



Artis 3060T, THE NEW A3+ DTG SERVO MOTOR DRIVEN SYSTEM

ERGONOMIC DIRECT TO GARMENT PRINTER FOR HIGH COLOR VALUE ON TEXTILES

artis3060T
artis3060T
artis3060T
artis3060T



HIGH COLOR VALUE ON TEXTILES


Multifunctional printer for all garments printing: T-shirts, jeans, tote bags, baby clothes to more

High quality printing on cotton, polyester, velvet and various textile substrates

A3+ size and highly cost efficient desktop printer

White ink channel for printing on dark textiles

High printing resolution and up to 2880 dpi


CE Certified System for Direct to Substrate Printing


Servo motor driven and high resolution output

Economical and refillable continuous ink supply system

Automatic repeat control panel print function

Easy to operate professional printer and low budget maintenance cost

Holiday automatic maintenance module and safe operation


ASK FOR A QUOTATION

BUSINESS OPPORTUNITIES AND APPLICATIONS

artis-3060T-white-T-shirt

WHITE T-SHIRT PRINTING

Print on any garments materials
4 minutes / 1PC / white T-shirt / pass
1440*720 DPI print resolution
Cost effective: 0.15 $ / T-shirt
Print size: 30*40CM / T-shirt Jig
Supporting any type of files

artis-3060T-dark-T-shirt

DARK T-SHIRT PRINTING

Print on both cotton and polyester
12 minutes / 1PC / dark T-shirt / pass
Print Resolution: 1440*720 DPI
Cost effective: 0.35 $ / T-shirt
T-shirt jig even for children clothing
Print any type of designs

artis-3060T-color-T-shirt

COLOR T-SHIRT PRINTING

12 minutes / 1PC / color T-shirt / pass
1440*720 DPI print resolution
Friendly cost: 0.35 $ / T-shirt
Print size: 30*40CM / T-shirt Jig
Half sleeve jig for easy print on sleeves
Vivid colors on various materials

artis-3060T-socks-printing

SPORTS SOCKS PRINTING

Print on various models and brands
1 minute / 1PC / sports socks / pass
Print Resolution: 1440*720 DPI
Cost effective: 0.08 $ / pair socks
Multiple pairs / pass with different designs
Suitable for sports promotional purposes

artis-3060T-tote-bag

DIRECT PRINT ON TOTE BAG

Print on any color textiles
2 minutes / 1PC / bag / pass
High resolution output
Cost effective: 0.12 $ / bag
Durable printing results for any design
Printing trays for perfect item positioning

artis-3060T-pillow

VELVET PILLOW PRINTING

Low running cost: 0.13$ / pillow
Print one pillow / pass / 3 minutes
Print Resolution: 1440*720 DPI
Gradient vivid color printing
Metallic jig to fix all type of fabrics
Print any artwork, designs, images etc.

Technical Specifications

pdf-icon
Print speed   8 min for Full A3+ size
Printing technology   Direct to garment inks
Ink    artisJet DTG inks (C,M,Y,K,W,W)
Media Application T-shirts, custom ties, custom uniforms, pants, socks, towels ... etc...
  Media Size A3+, 329 x 600 mm (12.95 x 23.62 in)
Printing Printing modes 4 pass
6 pass
8 pass
  Print Resolution Up to 2880 x 1440 dpi
  Print Head On demand Epson L801 piezo electric printhead. Made in Japan
Connectivity Nozzles Variable dot size printing technology, starting from 1.5 pl and up to 21pl
  Ports USB 2.0
  Operating systems Windows
Dimensions Depth x Width x Height Printer 645 x 690 x 490 mm (25.39 x 27.16 x 19.29 in),
Shipping 880 x 990 x 650 mm (34.64 x 38.97 x 25.59 in)
Weight   Printer 120Kg, Shipping 140 Kg
Flatbed transmission   Servo motor
Content of the box   artis 3060 T, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Damper
Environmental ranges   10 - 35 °
Power consumption and requirements   ~75W, Input voltage (auto ranging) 110V/220V 50 - 60 HZ
Certification   CE certified
Warranty   One year limited warranty

Automatic Printhead Height Adjustment

Equiped with sensors to automatically adjust head height and reduce the print head strikes. Automatic ink system maintenance: holiday module.


Continuous Ink Supply System

Unlike ink cartridges, this system allows for 100% utilization of available ink.


Automatic Reprint Function

This functionality allows the reprint of the last print job from the control panel.

Printer

artis 3060T artisJet 3060T, A3+ DTG Printer


Ink

Product No. Description Ink Compatibility

DTG - 1000-001 Cyan UV-LED Ink DTSAT3, 1000ml artis 3060T
DTG - 1000-002 Magenta UV-LED Ink DTSAT3, 1000ml artis 3060T
DTG - 1000-003 Yellow UV-LED Ink DTSAT3, 1000ml artis 3060T
DTG - 1000-004 Black UV-LED Ink DTSAT3, 1000ml artis 3060T
DTG - 1000-005 White UV-LED Ink DTSAT3, 1000ml artis 3060T
DTG - 500-001 Cyan UV-LED Ink DTSAT3, 500ml artis 3060T
DTG - 500-002 Magenta UV-LED Ink DTSAT3, 500ml artis 3060T
DTG - 500-003 Yellow UV-LED Ink DTSAT3, 500ml artis 3060T
DTG - 500-004 Black UV-LED Ink DTSAT3, 500ml artis 3060T
DTG - 500-005 White UV-LED Ink DTSAT3, 500ml artis 3060T
DTG - 200-001 Cyan UV-LED Ink DTSAT3, 200ml artis 3060T
DTG - 200-002 Magenta UV-LED Ink DTSAT3, 200ml artis 3060T
DTG - 200-003 Yellow UV-LED Ink DTSAT3, 200ml artis 3060T
DTG - 200-004 Black UV-LED Ink DTSAT3, 200ml artis 3060T
DTG - 200-005 White UV-LED Ink DTSAT3, 200ml artis 3060T

Fixing agent Description
BRCP-T-1000-001 Fixing agent for textile ink (Dupont), 1000ml
BRCP-T-500-001 Fixing agent for textile ink (Dupont), 500ml
BRCP-T-200-001 Fixing agent for textile ink (Dupont), 200ml

Software artisRIP 8.3 Software

Designed with the simplicity of use in mind, for artisJet RIP supports all BR printers models. It is suitable for beginners who are looking for a consistent vivid color output.

ArtisRip main features are

Layout platform

  • Layout editing platform, resize, mirror, text, color adjustment, color gamut check..
  • Raster and vector images support
  • Previewing and smart nesting

Print Engine

  • Vivid color reproduction
  • Simultaneous printing to multiple print devices
  • Simultaneous White and CMYK printing
    • - Color then White print mode
    • - White then color print mode
  • Support for jpg, tif, bmp, png, ai and pdf image files
  • Color management engine base with ICC profiles support
  • Individual ink channel adjustment
  • Automatic white ink trapping
  • Feathering rendering mode (elliminates banding, enhances color transitions)
  • Direct printing from common graphic software.(CorelDraw, Photoshop, Autocad...)


SEND YOUR INQUIRY TO US
Need more information or support about this printer? Start your request online and we'll find you a solution and give you a feedback.

e.g. - -
