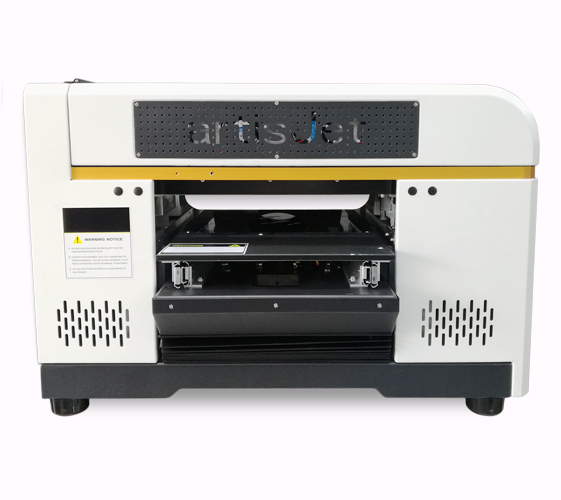

Artis 3060T, THE NEW A3+ DTG SERVO MOTOR DRIVEN SYSTEM
ERGONOMIC DIRECT TO GARMENT PRINTER FOR HIGH COLOR VALUE ON TEXTILES
HIGH COLOR VALUE ON TEXTILES

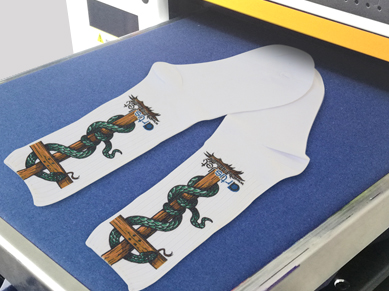

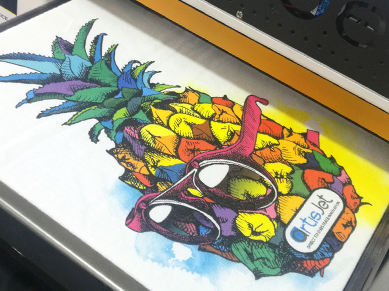

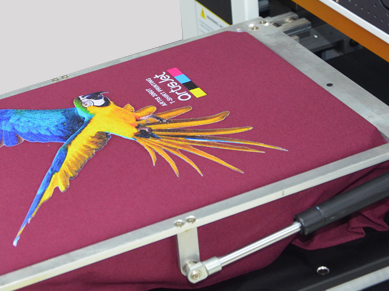

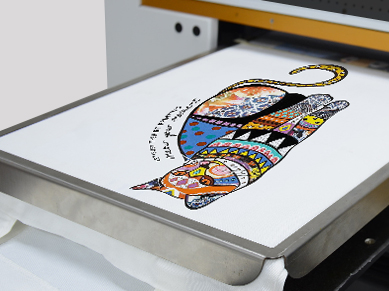

Multifunctional printer for all garments printing: T-shirts, jeans, tote bags, baby clothes to more
High quality printing on cotton, polyester, velvet and various textile substrates
A3+ size and highly cost efficient desktop printer

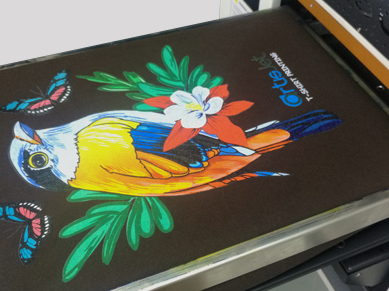

White ink channel for printing on dark textiles
High printing resolution and up to 2880 dpi
CE Certified System for Direct to Substrate Printing
Servo motor driven and high resolution output
Economical and refillable continuous ink supply system
Automatic repeat control panel print function
Easy to operate professional printer and low budget maintenance cost
Holiday automatic maintenance module and safe operation
BUSINESS OPPORTUNITIES AND APPLICATIONS
Technical Specifications
| Print speed | 8 min for Full A3+ size | |
| Printing technology | Direct to garment inks | |
| Ink | artisJet DTG inks (C,M,Y,K,W,W) | |
| Media | Application | T-shirts, custom ties, custom uniforms, pants, socks, towels ... etc... |
| Media Size | A3+, 329 x 600 mm (12.95 x 23.62 in) | |
| Printing | Printing modes | 4 pass 6 pass 8 pass |
| Print Resolution | Up to 2880 x 1440 dpi | |
| Print Head | On demand Epson L801 piezo electric printhead. Made in Japan |
| Connectivity | Nozzles | Variable dot size printing technology, starting from 1.5 pl and up to 21pl |
| Ports | USB 2.0 | |
| Operating systems | Windows | |
| Dimensions | Depth x Width x Height | Printer 645 x 690 x 490 mm (25.39 x 27.16 x 19.29 in), Shipping 880 x 990 x 650 mm (34.64 x 38.97 x 25.59 in) |
| Weight | Printer 120Kg, Shipping 140 Kg | |
| Flatbed transmission | Servo motor | |
| Content of the box | artis 3060 T, USB cable, Power cable, User manual book, spare parts package, Driver CD, Ink Chips, Ink tunnels, SCM Cable, Power fuse, RIP Software, Extra back-up Damper | |
| Environmental ranges | 10 - 35 ° | |
| Power consumption and requirements | ~75W, Input voltage (auto ranging) 110V/220V 50 - 60 HZ | |
| Certification | CE certified | |
| Warranty | One year limited warranty |
Automatic Printhead Height Adjustment
Equiped with sensors to automatically adjust head height and reduce the print head strikes. Automatic ink system maintenance: holiday module.
Continuous Ink Supply System
Unlike ink cartridges, this system allows for 100% utilization of available ink.
Automatic Reprint Function
This functionality allows the reprint of the last print job from the control panel.
Printer
| artis 3060T | artisJet 3060T, A3+ DTG Printer |
Ink
| Product No. | Description | Ink Compatibility |
| DTG - 1000-001 | Cyan UV-LED Ink DTSAT3, 1000ml | artis 3060T |
| DTG - 1000-002 | Magenta UV-LED Ink DTSAT3, 1000ml | artis 3060T |
| DTG - 1000-003 | Yellow UV-LED Ink DTSAT3, 1000ml | artis 3060T |
| DTG - 1000-004 | Black UV-LED Ink DTSAT3, 1000ml | artis 3060T |
| DTG - 1000-005 | White UV-LED Ink DTSAT3, 1000ml | artis 3060T |
| DTG - 500-001 | Cyan UV-LED Ink DTSAT3, 500ml | artis 3060T |
| DTG - 500-002 | Magenta UV-LED Ink DTSAT3, 500ml | artis 3060T |
| DTG - 500-003 | Yellow UV-LED Ink DTSAT3, 500ml | artis 3060T |
| DTG - 500-004 | Black UV-LED Ink DTSAT3, 500ml | artis 3060T |
| DTG - 500-005 | White UV-LED Ink DTSAT3, 500ml | artis 3060T |
| DTG - 200-001 | Cyan UV-LED Ink DTSAT3, 200ml | artis 3060T |
| DTG - 200-002 | Magenta UV-LED Ink DTSAT3, 200ml | artis 3060T |
| DTG - 200-003 | Yellow UV-LED Ink DTSAT3, 200ml | artis 3060T |
| DTG - 200-004 | Black UV-LED Ink DTSAT3, 200ml | artis 3060T |
| DTG - 200-005 | White UV-LED Ink DTSAT3, 200ml | artis 3060T |
| Fixing agent | Description | |
| BRCP-T-1000-001 | Fixing agent for textile ink (Dupont), 1000ml | |
| BRCP-T-500-001 | Fixing agent for textile ink (Dupont), 500ml | |
| BRCP-T-200-001 | Fixing agent for textile ink (Dupont), 200ml | |
| Software | artisRIP 8.3 Software |
Designed with the simplicity of use in mind, for artisJet RIP supports all BR printers models. It is suitable for beginners who are looking for a consistent vivid color output.
ArtisRip main features are
Layout platform
- Layout editing platform, resize, mirror, text, color adjustment, color gamut check..
- Raster and vector images support
- Previewing and smart nesting
Print Engine
- Vivid color reproduction
- Simultaneous printing to multiple print devices
- Simultaneous White and CMYK printing
- - Color then White print mode
- - White then color print mode
- Support for jpg, tif, bmp, png, ai and pdf image files
- Color management engine base with ICC profiles support
- Individual ink channel adjustment
- Automatic white ink trapping
- Feathering rendering mode (elliminates banding, enhances color transitions)
- Direct printing from common graphic software.(CorelDraw, Photoshop, Autocad...)
